GlobalSat GTR-129 Vehicle-Tracker (GPS/GSM, IP67, Motion-Sensor, Battery, SMS/TCP/UDP)

GlobalSat GTR-129 Vehicle-Tracker (GPS/GSM, IP67, Motion-Sensor, Battery, SMS/TCP/UDP)
  • IP67 Waterproof !
  • Motion-Sensor !
  • SMS / TCP / UDP !
  • GPS / GSM / GPRS !

GTR-129 is designed as durable and multi-functional GPS/GSM/GPRS tracker. Compact, robust and waterproof design for motorcycle, car, electric scooter, golf cart, truck and boat/yacht. You can track the position through a free-to-use web portal. In addition there is a programming-interface available for integrating the tracker into your own applications.

Features :
- High Sensitivity GPS Receiver
- Compact size and Waterproof IP67 design
- Built-in high sensitivity GPS/GSM antennas
- Quad-Band GSM System (850/900/1800/1900MHZ)
- Built-in motion sensor
- AGPS support
- Support communication protocols- SMS/TCP/UDP
- Mul
[more]

Share

98.00 EUR
incl. 19% VAT, plus shipping
In Stock (13 pcs)

Add to cart

GTR-129 is designed as durable and multi-functional GPS/GSM/GPRS tracker. Compact, robust and waterproof design for motorcycle, car, electric scooter, golf cart, truck and boat/yacht. You can track the position through a free-to-use web portal. In addition there is a programming-interface available for integrating the tracker into your own applications.

Features :
- High Sensitivity GPS Receiver
- Compact size and Waterproof IP67 design
- Built-in high sensitivity GPS/GSM antennas
- Quad-Band GSM System (850/900/1800/1900MHZ)
- Built-in motion sensor
- AGPS support
- Support communication protocols- SMS/TCP/UDP
- Multiple I/Os support: 1 Digital Input for custom function, 1 Digital input for optional Emergency button, 1 Analog Input, 1 Digital Output for Relay, 1 Digital Input for ACC detection
- Configuration and firmware update via Over-The-Air
- Alert functions including Power low/ Over speed/ Movement alarms
- Tracking by preferred interval, scheduling and Geofence
- Multiple power Solutions
- Low power consumption (eg. 10mAh with 15min report interval)

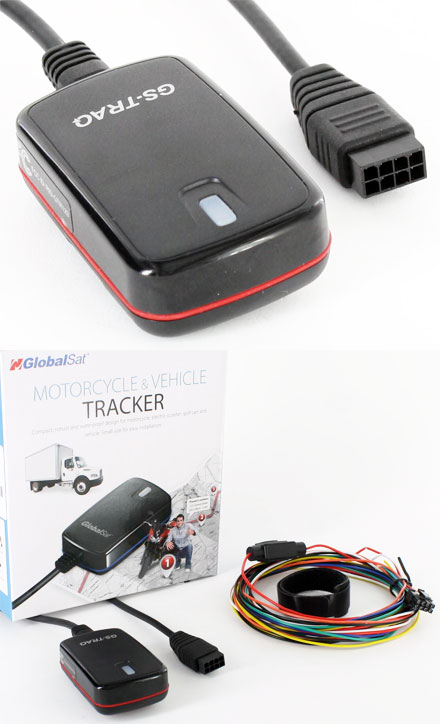

Scope of supply:
- GTR-129 Device
- 8-pin Hard wire power & I/O cable
- Velcro Tape
- Quick start guide

GSM
Frequency Quad Band 850/900/1800/1900 MHz
Antenna Type Built-in Pi-Fa antenna
GPS
Frequency L1, 1575.42 MHz
Channels 66 channels
Antenna Type Built-in patch ceramics antenna
Acquisition Rate Hot start : < 1 sec, avg.
Warm start : 33 sec, avg.
Cold satrt : 33 sec, avg.
Reacquisition : 0.1sec
Temperature Operating : -30° to 60°C
Storage : -40° to 60°C
Humidity : 5-95% Non-condensing
Power input 9-36V DC
Battery capacity 320mAh rechargeable
I/O pin Ignition (ACC)
1x Emergency button input
1x Digital Input, 1x Digital Output
1x Analog input (0-28V)
LED indicator Normal mode:
Red blinking: Device is under booting and SIM-PIN not ready
Red solid: SIM PIN Ready but GSM not registered
Yellow solid: GSM registered, but GPRS not connected
Green solid: GSM registered, and GPRS connected
Hiding mode:
Red blinking: Device is under booting
After complete the boot, turn off all LEDs.
Sensor Built-in Motion sensor
Dimensions 61x38x19 mm
Weight 78.5 g
Data sheet Download (PDF)
Data sheet Print view
Manual [EN] Download (PDF)
Development [EN] Download
Integration Tutorial [DE] Download
Integration Tutorial [EN] Download
Software Tutorial [DE] Download
Software Tutorial [EN] Download
