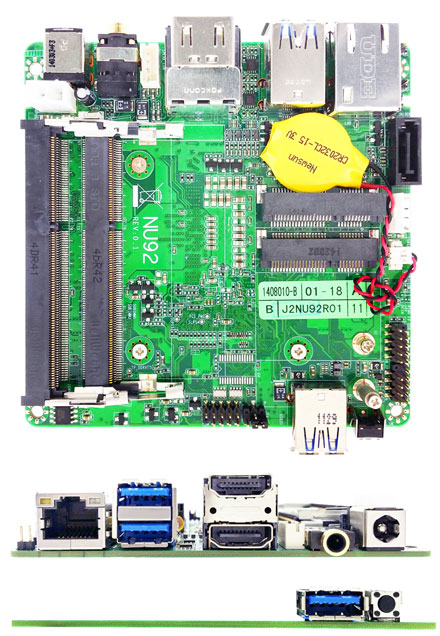

Jetway NU92-4300U (Intel Haswell-U)

Jetway NU92-4300U (Intel Haswell-U)

  • INTEL® Haswell-U / Broadwell-U SoC Processor
  • Support 2 * SO-DIMM DDR3L 1333/1600 up to 16 GB
  • 9~24V Wide range DC-in
  • Support INTEL® i218LM Gigabit PHY LAN
  • Onboard 1* Half size Mini PCIe socket
  • Onboard 1*mSATA socket
  • 3 * USB3.0, 2 * USB2.0
  • 2 * HDMI1.4 ports
  • Support slim Fan design
  • NUC Form Factor(101 * 101mm)


Share

649.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (mSATA):

Build/Install:
Form Factor
Dimensions - NUC (101 X 101 mm)
 Processor System
CPU - Intel® Haswell-U / Broadwell-U SoC Processor
Core Number - (By CPU)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - SoC
BIOS - AMI 128Mb Flash ROM
 Expansion Slot
PCI - 0
Mini-PCIe - 1 (half size)
mSATA - 1 (full size)
PCIe - 0
CFast Card Socket - 0
CF Card Socket - 0
 Memory
Technology - Two Channel DDR3L 1333/1066 MHz SDRAM
Max. - 16 GB
Socket - 2 * SO-DIMM
 Graphics
Controller - Integrated Intel® HD Graphics
VRAM - Shared Memory
VGA - No
LVDS - No
HDMI - 2
DVI-I - No
DisplayPort - No
MultiDisplay - Yes (Dual Display)
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: INTEL® 218LM
Connector - 1 x RJ 45
 SATA
Max Data Transfer Rate - 1 x SATAIII (6.0Gb/s)
 External I/O
VGA - 0
DVI-I - 0
HDMI - 2
DisplayPort - 0
Ethernet - 1
USB - 3 (2 x USB 3.0 at rear & 1 x USB3.0 at front)
Audio - 1 (Line-out W/SPDIF-out)
Serial - 0
eSATA - 0
PS2 - 0
DC-input - +9~24V DC in Jack
 Internal Connector
USB - 2 (2 x USB 2.0)
PS/2 - 0
LVDS / inverter - 0
VGA - 0
Serial - 1 (1 x RS232/422/485)
SATA - 1
mPCIe - 1 (half size)
Parallel - 0
mSATA - 1 (full size)
CIR - 0
GPIO 8-bit - 0
Chassis intrusion - 1
Audio Amplifier Header - 1
AT mode jumper - 1
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR - 9~24V DC-In
- 2-pin PWR Con
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0℃– 60℃
- Storage: -20℃– 85℃
Data sheet Download (PDF)
Data sheet Print view
