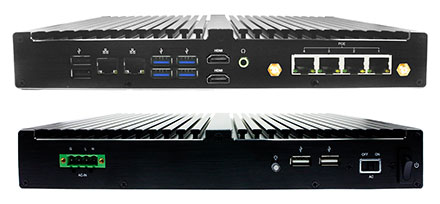

Jetway JBC512F3EGW-5200-B (Intel Broadwell)

Jetway JBC512F3EGW-5200-B (Intel Broadwell)

  • INTEL® Broadwell I5 5200U SoC Processor
  • 2 * SO-DIMM (Dual Channel DDR3L 1333/1600MHz SDRAM)
  • Support CPU Smart FAN
  • Giga LAN Port * 2
  • Support 10/100M/1000M Base-TX RJ45 Ports * 4
  • Support Watch dog Technology
  • Support AC 90~240V input
  • Applications：Industrial Control System、
    Networking Server System、Security Industry


Share

898.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :
Product Dimension 264 (W) * 199.4 (D) * 38 (H) mm
Product Model JBC512F3EG(W)-5200-B
MB Model & Size NF3EP-5200 / 3.5” SBC
BIOS AMI 32MB SMT Flash ROM
CPU INTEL® Broadwell I5 5200U
Memory 2 * SO-DIMM (Dual Channel DDR3L 1333/1600MHz SDRAM)
Storage Space 2.5” SATA Device * 1
Colors Black
Front I/O Port 4 PIN AC Input * 1 AC ON-OFF * 1 Power LED * 1 Power SW * 1 USB 2.0 * 2
Rear I/O Port USB3.0 * 4 , USB2.0 * 2 HDMI * 2 Giga LAN Port * 2 Audio * 1 WiFi Port * 2 (JBC512F3EGW-5200-B only)
POE Port 10/100M/1000M Base-TX RJ45 Ports * 4 Conforms to IEEE802.3af, IEEE802.3at IEEE 802.3x full-duplex flow control, per port up to 23W Provides 4 PoE injector, per port DC52.5V-0.48A-25W For Switch : Marvell 88E6176 For PoE : MAX5980
Power Source 150W AC to DC OP Power inside AC 90~240V input
Accessory AC Cable * 1 4 Pin Terminal block con * 1 User Manual * 1 CD * 1 Screw Package * 1
­­Packing Net Weight：3.6KG Gross Weight：4.5KG Color Box Dimension：406 (W) x 148 (D) x 359 (H) mm
­­Temperature Operating within 0~50 centigrade Storage within -10-70 centigrade
Certification EMC : CE , FCC Safety : RoHS , ErP
­­Applications Industrial Control System Networking Server System Security Industry
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
