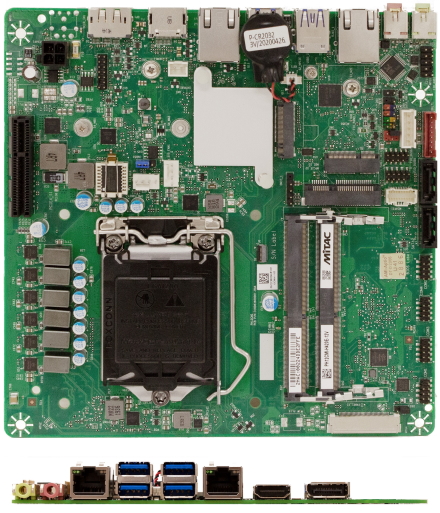

Mitac PH12CMI-Q470 Thin-ITX (Intel Q470E) [12V DC-in]

Mitac PH12CMI-Q470 Thin-ITX (Intel Q470E) [12V DC-in]
  • Intel Q470E Chipset !
  • Intel vPro tech support !
  • up to 32GB DDR4 SO-DIMM !
  • Support triple display !

  • Intel® Comet Lake 10th 65W(10cores) LGA processor
  • Intel® Q470E Chipset
  • Intel® vPro technology support (Q470E)
  • 2 x DDR4 SO-DIMM up to 32GB
  • Support triple display for HDMI, DisplayPort and LVDS/eDP
  • 1 x M.2 M 2280, 1 x M.2 E 2230, 1 x mPCIe Full size, 1 x PCIe X4
  • 2 x Intel® Gigabit Ethernet
  • DC-in 12V




Share

249.95 EUR
incl. 19% VAT, plus shipping
Available in 4 weeks
Add to cart
MECHANICALFORM FACTORMini-ITX: 6.7" x 6.7" (170 mm x 170 mm)
SYSTEMPROCESSOR10th Gen Intel® Comet Lake LGA1200 Socket Processor / 10core TDP Max 35W / 8ccore TDP 65W
CHIPSETIntel® Q470 (Support RAID 0 / 1 / 5, VPro)
SYSTEM MEMORYDDR4 2933/2666/2400MHz / 2 x 260-pin SO-DIMM / Max. 64 GB (Non-ECC)
GRAPHICSIntel® HD Graphics
ETHERNETIntel® I219-LM Giga LAN + Intel® I211-AT Giga LAN
AUDIORealtek® ALC662 / ALC888
I/O CHIPSETNuvoton NCT6126D(eSPI)
TPMTPM Header / (support TPM module board NPCT750)
EXPANSION SLOT1 x M.2 2230 E key(PCIe / USB) / PCIe 3.0 X4 slot / M.2 2242 / 2280 M key (PCIe, SATA) / Mini PCIe Full size (PCIe / USB / SATA)
BIOSAMI BIOS / 128 Mbit SPI
H/W MONITORTemperature Monitor / Voltage Monitor / Fan Monitor
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan / System Fan
GRAPHICS2nd DISPLAYPORT-
VGA-
DVI-
HDMIUp to 4K (4096 x 2160) @30 Hz
DISPLAYPORTUp to 4K (4096 x 2304) @60 Hz
LVDSUp to 1920 x 1200 @60 Hz
eDP (Option)Up to 4K (4096 x 2304) @60 Hz
REAR I/OUSB4 x USB 3.2 Gen 2 (Q470)
DISPLAY I/O1 x HDMI 1.4 / 1 x DisplayPort 1.2
AUDIO I/O1 x Mic-in / 1 x Line-out
LAN I/O2 x RJ-45
SERIAL PORT-
PS/2 PORT-
OTHERSDC-in 12V(DIN 4-pin power cable) / DC-in 19V (5.1 mm / ID, 7.4 mm / OD)
INTERNAL CONNECTORSSTORAGE2 x SATAIII / 1 x SATA power header
USB6 x USB 2.0
DISPLAY I/O1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector
AUDIO I/O-
SERIAL PORT4 x RS232 (One supports RS232 / 422 / 485)
PARALLEL PORT-
GPIO1 x MiAPI Header (Programmable. Support 10-bit GPIO)
FAN1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header
POWER1 x AT / ATX Mode Select Jumper / 1 x 4-pin ATX Power Connector
OTHERS1 x CMOS Jumper / 1 x Front Audio Header (Mic-in & Line-out) / 1 x panel power select header / 1 x backlight power select header, / 1x buzzer header / 1x Digital MIC
POWER REQUIREMENTPOWER INPUTDC-in 19V (5.1 mm / ID, 7.4 mm / OD) / ATX 2-pin 19V / DC-in 12V(DIN 4-pin power cable)/ ATX 4-pin 12V
ENVIRONMENTALOPERATING TEMPERATURE0 ~ 60°C (32 ~140°F)
STORAGE TEMPERATURE-40 ~ 85°C (-40 ~185°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
CERTIFICATIONCE / FCC Class B
OSOS SUPPORTWindows® 10 64-bit / Linux (support by request)
PACKING LISTPACKAGE1 x Motherboard / 2 x I/O Bracket (Half and Full Height) / 1 x Quick Installation Guide / 1 x SATA & SATA PWR Cable
