MM400 - VGA 7" TFT - Touchscreen USB - PAL/NTSC - IR Remote - Audio [LED-Backlight]

MM400 - VGA 7" TFT - Touchscreen USB - PAL/NTSC - IR Remote - Audio [<b>LED-Backlight</b>]
3D 360° View
  • High brightness !
  • One-cable-4-all !
  • Slim design !

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

A bargain display, but with many features :
- Long All-In-One connector-cable
- High brightness (400 nits)
- Many accessoiries
- Rear camera input
- Touch
[more]

Share

279.00 EUR
incl. 19% VAT, plus shipping
In Stock (30 pcs)

4 von 5 Sternen
62 ratings
Add to cart
Compare

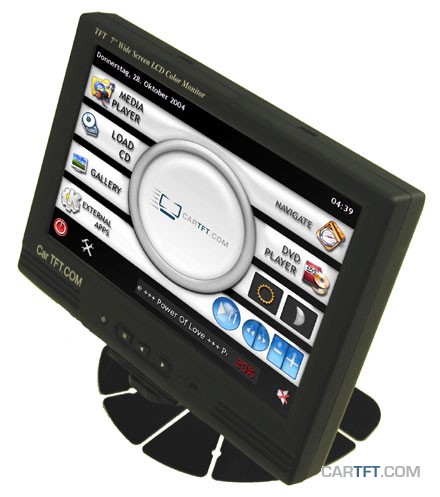

Front

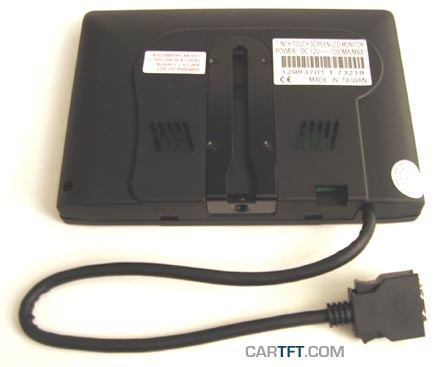

Rear

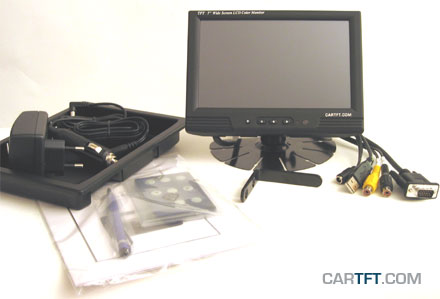

Side
LCD Size 7"
Aspect Ratio 16:9
VGA resolutions 640x480-1920x1200
Native resolution 800x480
Dot resolution 2400x480
Brightness 400
VGA Input D-SUB 15
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA
Touchscreen USB
Case color black
Power Input 12-24VDC
Power Consumption 9W
Case size 178 x 130 x 27 mm
Visible area 154 x 93 mm
Certificates CE, E1
Style On-Dash
no Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
yes Headrest mount
yes TS pencil
no Earphone
no Adjustable video aspect
no Mirrorable video
yes Reverse camera input

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

A bargain display, but with many features :
- Long All-In-One connector-cable
- High brightness (400 nits)
- Many accessoiries
- Rear camera input
- Touchscreen-pencil integrated in rear enclosure


Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..



Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz



Spezifications
Screen size 7" digital
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1200 (also eg. 1366x768)
Color configuration RGB stripe
Power input DC 12V
Power consumption max. 8W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
Dimensions Display Case : 178x130x27 mm
Display : 154 x 93 mm
Headrest Mounting : 203x151x27 mm
Video input signal 1.0Vp-p, composite video
Brightness 400 cd/m²
Contrast 500:1
Vibration IEC68-2-6
Operating Temperature 0° to 70°C
Features Auto Power On/Off
Touchscreen-pencil integrated in rear enclosure
Full function OSD control (englisch)
Built-in speakers
Automatic switching to rear camera (by signal detection on AV3)
What is included ? - 7" VGA Touchscreen TFT with Video-support
- Infrared Remote Control
- Car dash mounting bracket
- Head rest shroud
- VGA/Video/Audio/Power/Touchscreen-cable (all-in-one !) 2,5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
Drawing (PDF) Download (PDF)
800x480 Driver (Windows 7) Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 62 ratings
4 von 5 Sternen from gattone am 28.04.2012 | | See all my comments

Display very nice and responsive, the TIP, especially carpc.Molto crisp, congratulations to the staff, serious and fast

5 von 5 Sternen from BrianMay am 30.10.2007 | See all my comments

not the best looks, but great build quality and great screen and touchscreen quality. a must buy in the 7" category

Update from :2012-01-29 22:42
best 7" screen!it's been around for years and is still a great choice when it comes to price/reliability.great image quality a readability at an unbeatable price.higly recommended

4 von 5 Sternen from zaptorrent am 29.11.2011 |

This is the only screen of this type I have tried and I am very pleased with having bought this one. The screen is very responsive and it runs without problems from a USB-hub as well. Even the sound is above expectation when used for navigation (although I obviously wouldn't use it for entertainment).
I'm however not mad about the AllInOne-cable for my setup. I have the carputer in the trunk and the screen at the front. I need power and USB to be plugged in at the front and VGA going to my trunk but with the AIO-cable I have to run everything to the trunk then run new cables back to the screen in front. Depending on your setup that could be a minor inconvenience. Aside from that I highly recomend this product.

5 von 5 Sternen from RockNLol am 16.10.2011 | | See all my comments

Bin höchst zufrieden mit diesem Touchscreen. Habe ihn in meinem Opel Corsa eingebaut, wo sehr wenig Platz im Armaturenbrett ist, wobei mir die kompakte Kabellösung (ein Kabel für alle Anschlüsse) und der Einbaurahmen sehr geholfen haben. Das Bild ist sehr gut, läuft mit der Intel GMA950 meines Car-PCs einwandfrei. Den Touchscreentreiber musste ich zwar manuell herunterladen und installieren, dann funktioniert er aber wunderbar.

5 von 5 Sternen from WeberEngineering am 16.07.2011 |

Die Ware war/ist so wie beschrieben bei mir angekommen. Schnelle und vor allem auch pünktliche Lieferung. Des weiteren gibt es noch eine Sende-Nachverfolgung (nicht überall). Alles fein sauber und sicher verpackt. CARTFT kann man nur empfehlen!!!! Macht weiter so!
